Elmer LED Panel – IP20 – Parabolic louvre – Norse Lighting

Name: Norse LED Lighting
Address: South wimbledon, Wimbledon, London, GB

White painted metal sheet

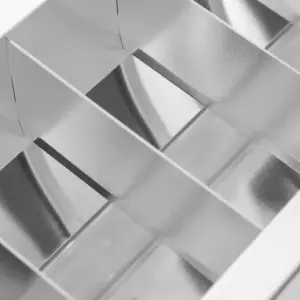

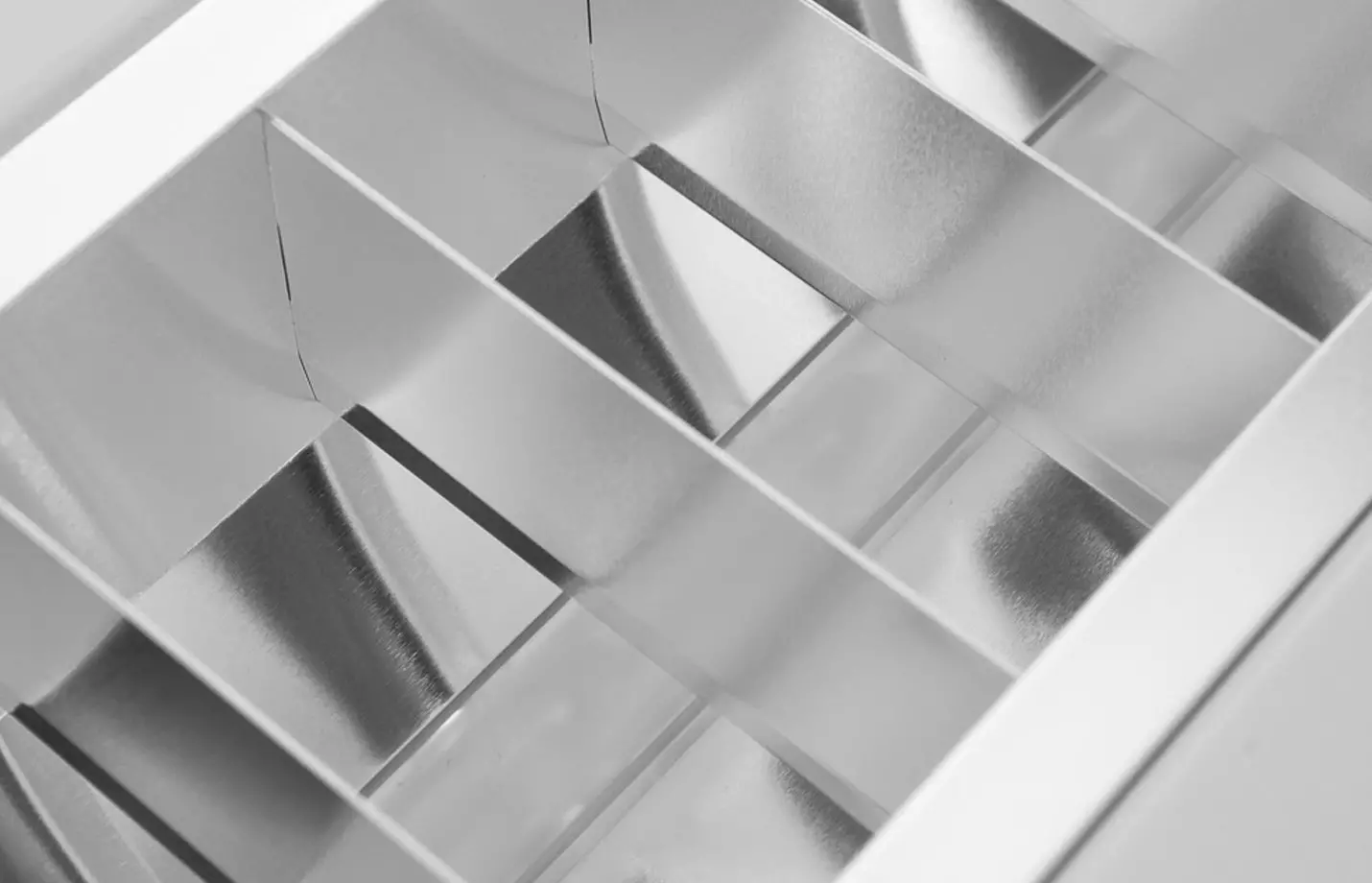

Optic option1: Double parabolic louvre of highly polished aluminium, with opal cover of LED modules
Optic option2: Double parabolic louvre of mat aluminium, with opal cover of LED modules
Mid power LED
CRI 80 (CRI 90 on request)

White painted metal sheet
Optic option1: Double parabolic louvre of highly polished aluminium, with opal cover of LED modules
Optic option2: Double parabolic louvre of mat aluminium, with opal cover of LED modules
Mid power LED
CRI 80 (CRI 90 on request)

Dimensions(MM): L600xW600xH52 (L2)(M1) | L625xW625xH52 (L2)(M2) | L600xW600xH52 (L4)(M3) | L625xW625xH52 (L4)(M4) | L1200xW300xH52 (L2)(M5) | L1250xW310xH52 (L2)(M6)
Power (W): 33W | 28W | 39W | 28W | 39W | 28W
Light Output(LM): 3400lm | 3100lm | 3800lm | 3100lm | 3800lm | 3100lm
Color Temperature (Kelvin): 3000K, 4000K, 5700K
Installation: Recessed Mounting
Lamp Type: LED
IP: IP20
Mains voltage: 220-240V
Mains frequency: 50 – 60Hz
Power factor: >0.92
Colour rendering (Ra): >80
Lifetime: 50,000h
Operating temperature: -20 to +40 deg C
Beam Angle (Degree): 120°
Housing Color: White
Accessories (Options): Dali, Dim 1-10V, Gypsum ceiling installation frame
Warranty: 3 Years

Note: Minimum Order Quantities may apply
